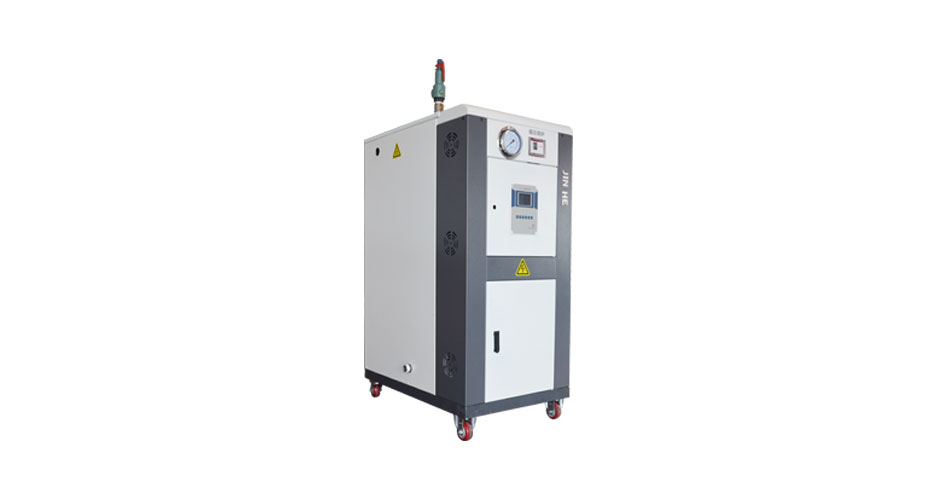

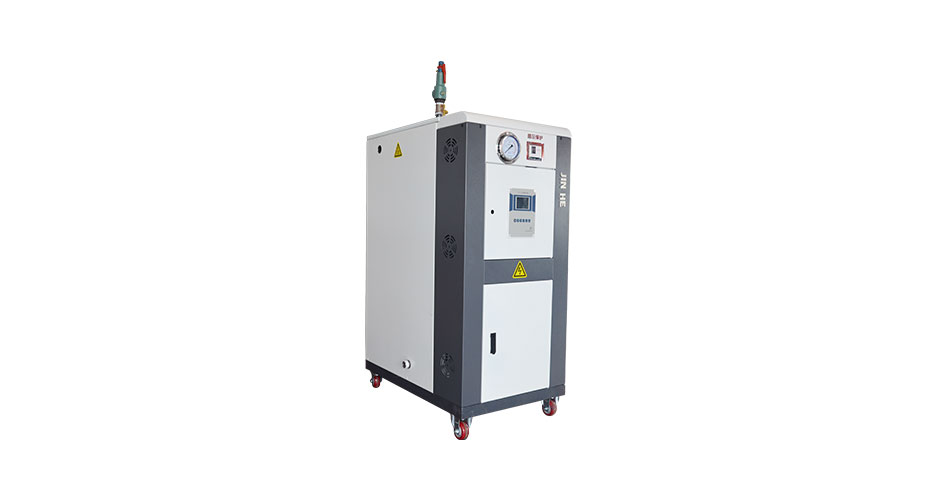

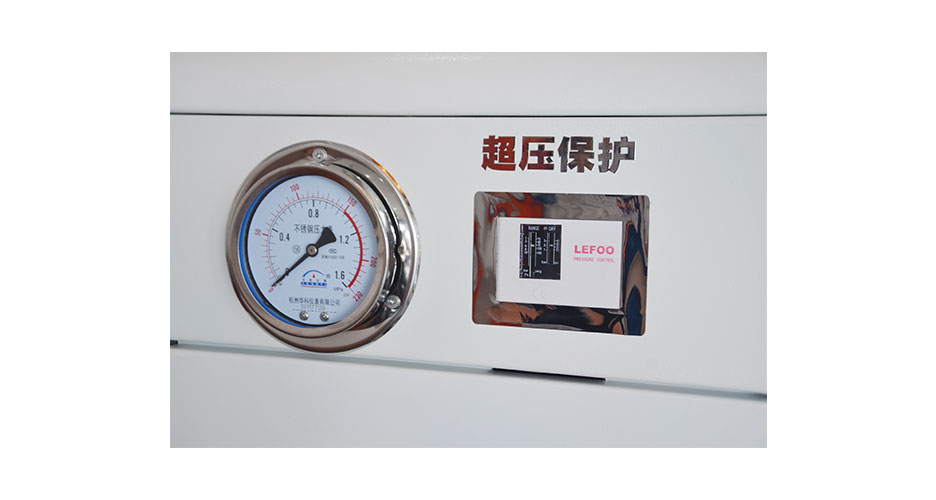

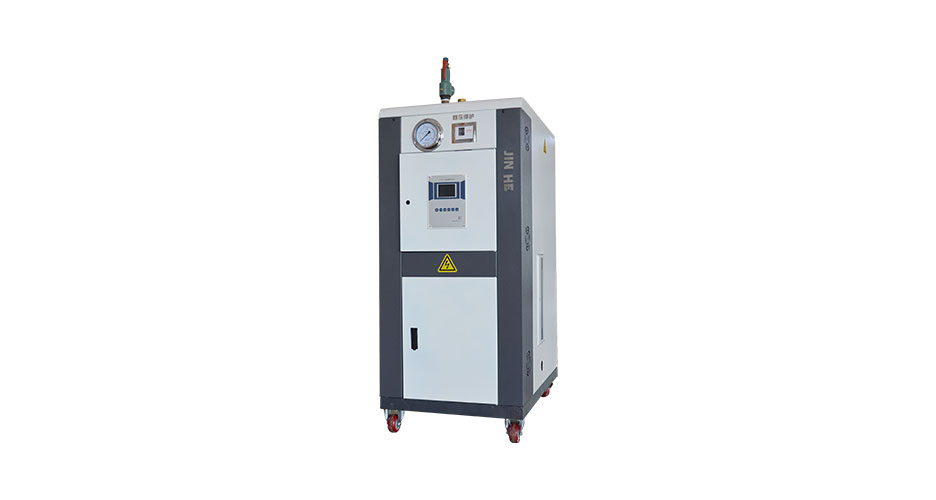

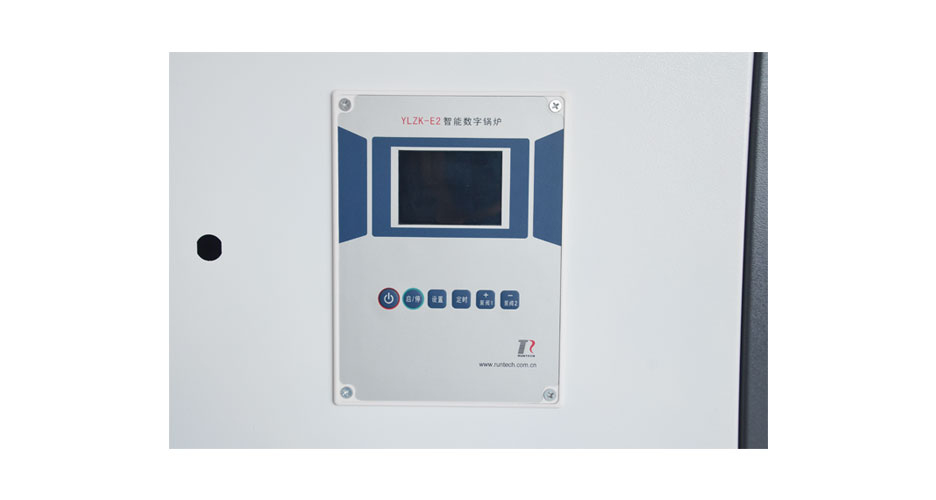

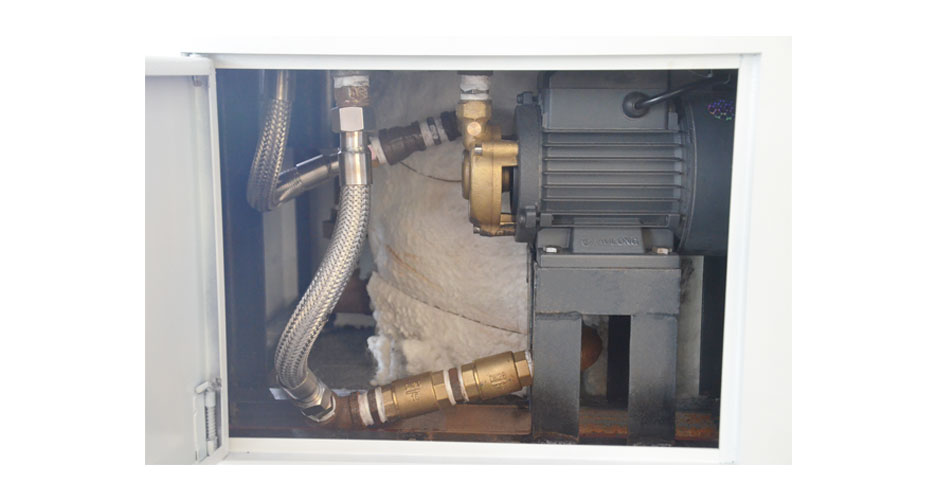

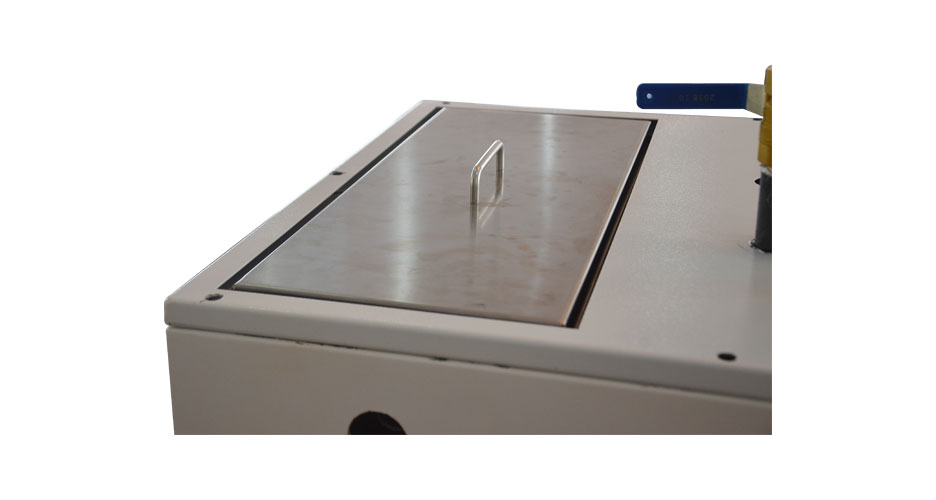

This product is my company in 2018 research and development of patented products (Patent No.: ZL 2018 2 0205621.7) a combination of electrically heated evaporator, PLC control, the body, pressure gauge, stainless steel built-in tanks, level control, pressure controller and other originals in the combination of the appearance of a patented chassis, supporting directional wheels, universal wheels overall aesthetic, easy to operate, easy to move.

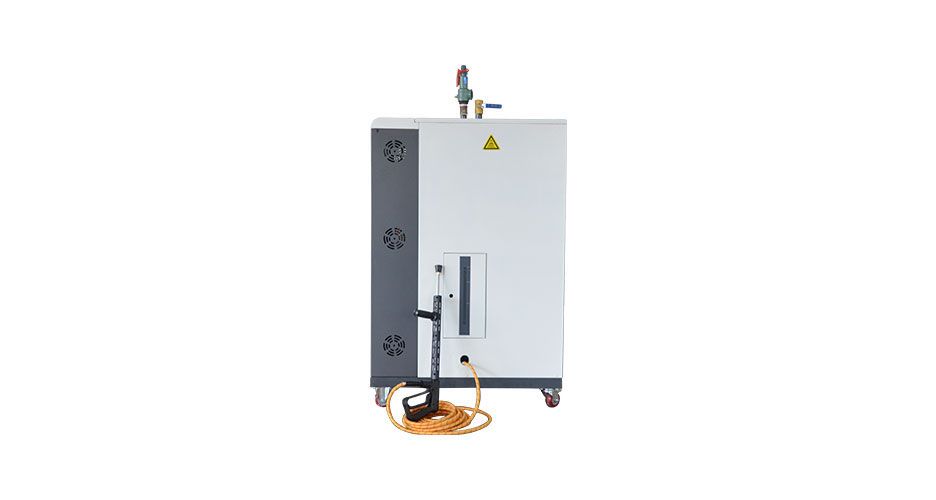

Self-control high temperature sterilization cleaning machine is our company in the original patent products (patent number: ZL 2018 2 0205621.7) based on the upgrading and increase the superheater, hand-held anti-scald sterilization cleaning spray rob and heat preservation and high temperature hose. Suitable for office buildings, factories, movie theaters and other public places with intensive flow of people, such as floor, seat, air sterilization and rapid cleaning.
Scope of Application：
Medical, chemical, high-temperature sterilization, quick cleaning, biological fermentation, soybean product processing, ironing and washing, concrete maintenance, bathing and swimming.
Dongguan Jinhe boiler Equipment Co., Ltd. specializes in boiler and boiler equipment, pressure vessels, pressure piping, environmental equipment design, manufacture, installation, renovation, maintenance, energy saving, energy contract one-stop professional services company.
Dongguan Jinhe boiler Equipment Co., Ltd. is located in the engineering department, production and operation department, equipment management department, quality inspection department, office management department and domestic 6 directly under branches, 2 independent subsidiaries."2015 Joint Jiangsu Quan Xin boiler factory R & D and production of high efficiency full condensing gas boiler, to achieve production, marketing, research and one-stop comprehensive services”
More than 20 years of industry experience, a number of equipment products have independent intellectual property patents
Design, manufacture, installation, renovation, maintenance, energy saving of boiler and boiler complete sets of equipment, pressure vessels, pressure pipes, environmental equipment
Engineering department, production and operation department, equipment management department, quality inspection department, office management department and domestic 6 directly under branches, 2 independent subsidiaries.
National Customer Service Center area of 2400 square meters of rapid response throughout the country after-sales service
| model number | Rated Evaporation | rated wattage | rated pressure | rated temperature | rated Voltage | Overall dimensions （L×W×H） | High-temperature elimination cleaning machine Area | |
| saturated vapor | superheated steam | |||||||
| JHDR-0.001-0.7 | 1KG/H | 0.72KW | 0.7Mpa | 171Ｃ° | 200Ｃ° | 220 | 600×400×900 | 100m2/h |
| JHDR-0.005-0.7 | 5KG/H | 3KW | 0.7Mpa | 171Ｃ° | 200Ｃ° | 220 | 600×400×900 | 150m2/h |
| JHDR-0.01-0.7 | 10KG/H | 6KW | 0.7Mpa | 171Ｃ° | 200Ｃ° | 220 | 900×400×1000 | 200m2/h |
| JHDR-0.03-0.7 | 30KG/H | 18KW | 0.7Mpa | 171Ｃ° | 205Ｃ° | 380 | 900×600×1200 | 600m2/h |
| JHDR-0.05-0.7 | 50KG/H | 36KW | 0.7Mpa | 171Ｃ° | 205Ｃ° | 380 | 900×600×1200 | 1000m2/h |
| JHDR-0.1 -0.7 | 100KG/H | 72KW | 0.7Mpa | 171Ｃ° | 205Ｃ° | 380 | 1200×900×1400 | 1200m2/h |
| JHDR-0.3 -0.7 | 300KG/H | 210KW | 0.7Mpa | 171Ｃ° | 205Ｃ° | 380 | 1200×900×1400 | 3000m2/h |
| JHDR-0.5-0.7 | 500KG/H | 350KW | 0.7Mpa | 171Ｃ° | 210Ｃ° | 380 | 1500×1200×1800 | 5000m2/h |
| JHDR-1.0-0.7 | 1000KG/H | 720KW | 0.7Mpa | 171Ｃ° | 210Ｃ° | 380 | 1900×1580×2200 | 10000m2/h |
| Note: 1. Superheated steam is the elimination temperature; 2. Due to the continuous changes in technology, the structure and performance of the product may change, the data in this table is for reference only. | ||||||||
